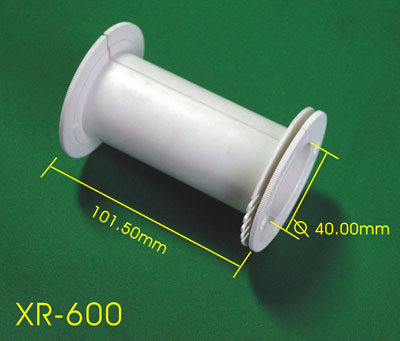

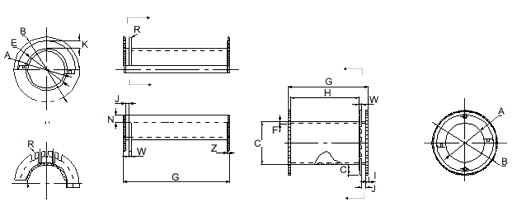

Check the main design dimensions as shown: XR-600A
Icon code
|
Design size
|
Tolerance
|
A
|
40.00
|
Minimum value
|
|
B
|
69.60
|
The maximum value
|
|
C
|
12.60
|
Minimum value
|
|
E
|
44.00
|
±
|
|
F
|
2.00
|
±0.10
|
|
G
|
101.50
|
The maximum value
|
|
H
|
92.00
|
±0.30
|
|
I
|
2.50
|
±0.10
|
|
J
|
2.10
|
±0.10
|
|
K
|
5.30
|
Reference
|
|
M
|
7.00
|
Minimum value
|
|
R
|
0.30
|
Reference
|
|
W
|
2.20
|
Reference
|
|
Z
|
0.70
|
Reference
|
● Detection tool:digital caliper or micrometer.
● Indicate the code for inspection.
● The number of outlet slots is 5×2.
● hole A is not roundness≤0.40mm,both sides of the hobbing plane of the parallelism≤0.40mm,no significant warping.
● hole hole anastomosis is not allowed to have a step,feel smooth and unimpeded.
● no residual shape or damage,color is no different normal
● finish up to▽7 or more,but allow for harmless scars and miniatures.
● Metal-free impurities or other debris,containing metal,debris products,must be waste separation.
● no melting marks,no internal pores bright spot.There are stomatal highlights(excluding melting marks)products for foreign goods.
● no flash,burr and excess material.Key parts of the burr≤0.05 mm.
● anti-pressure≥25 kg/square centimeter,no damage.
● feel a strong elasticity,and not brittle.
● hardness,wear resistance are suitable for high-speed heavy-duty rotation.
● Selection of raw materials must meet the requirements of the EU ROHS directive,and has UL yellow card certification and fixed-point supply.
● heat distortion temperature≥120 degrees Celsius,insulation resistance must be≥1000M ohm,flame retardant UL94Vo level/0.8-3.2mm.
● other structures should meet the transformer manufacturing process as the standard.
